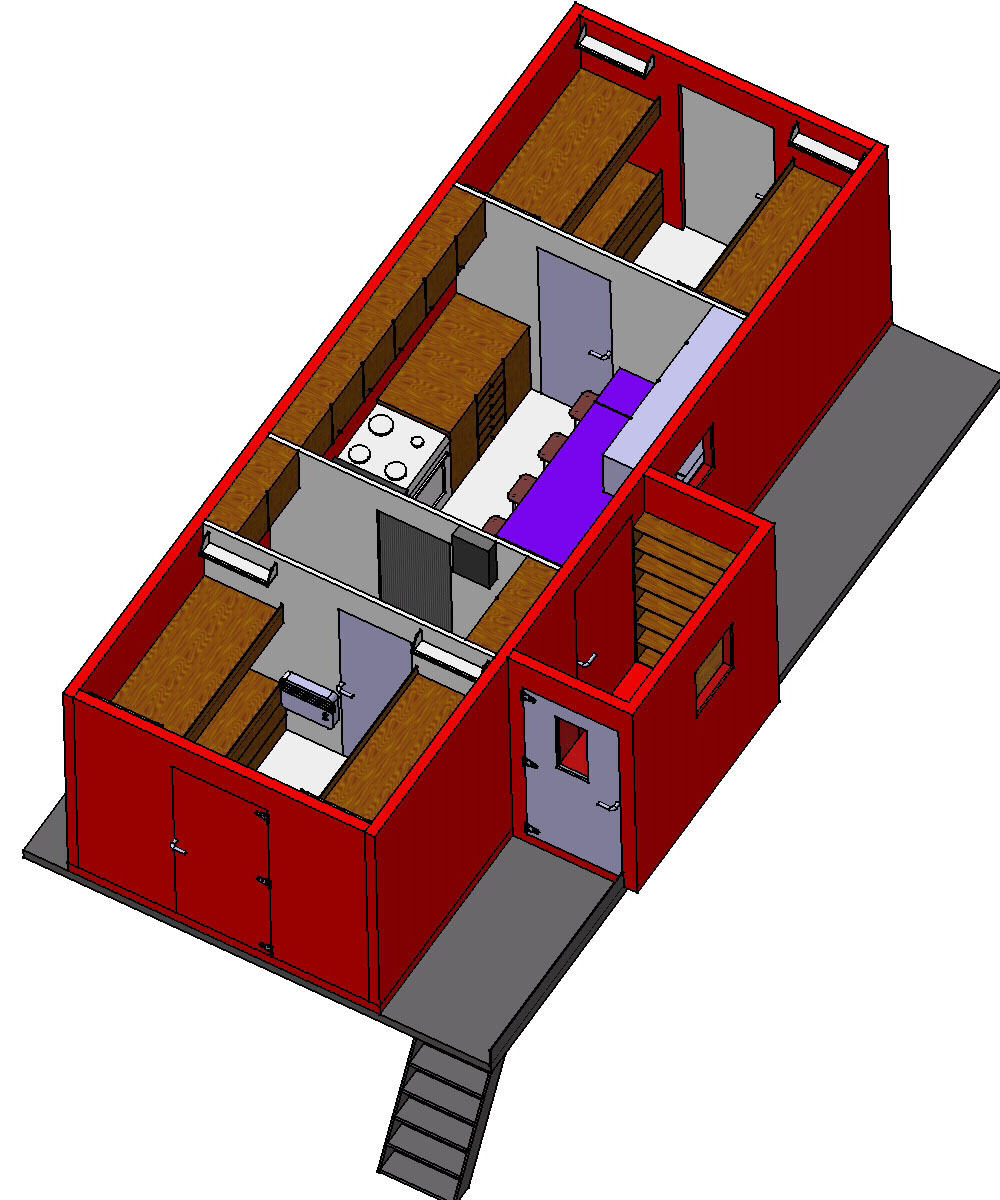

Drawing_Life_Unit_View_Without_Roof_1

Drawing_LifeUnit_View_WithoutRoof_1

OLYMPUS DIGITAL CAMERA

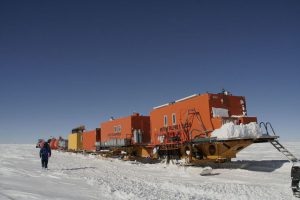

Caravans, 1992 units

Caravans_And_Accomodation





















Traverse operation and evening maintenance works on the convoy involve 15 to 16 hours of work each day. Convoy personnel need comfortable and ergonomic accommodation. Three units have been assigned to meet these needs, comprising:



  • The “Living” module protected from the exterior by an airlock, which is divided into two sleeping cabins and one surgery/radio room, one kitchen/dining room and one cold store
  • The “Energy” module, also protected by an airlock, houses the generator set, water treatment and water production (snow melter) and distribution systems, the workshop, shower room, toilets, fresh water outlet and heated store for medical supplies. The generator set rated at 65 kW powers the two modules, the food store and the vehicle engines’ heaters during stops to keep machines warm. A fuel pumping unit is located on the outside of the module and is used for refuelling the tractors. The toilets use an electric incinerator for solid waste and a tank to store urine.
  • The “Stores” module, which is divided into two rooms, one for provisions and one for spare parts.



Caravans_1992_Set

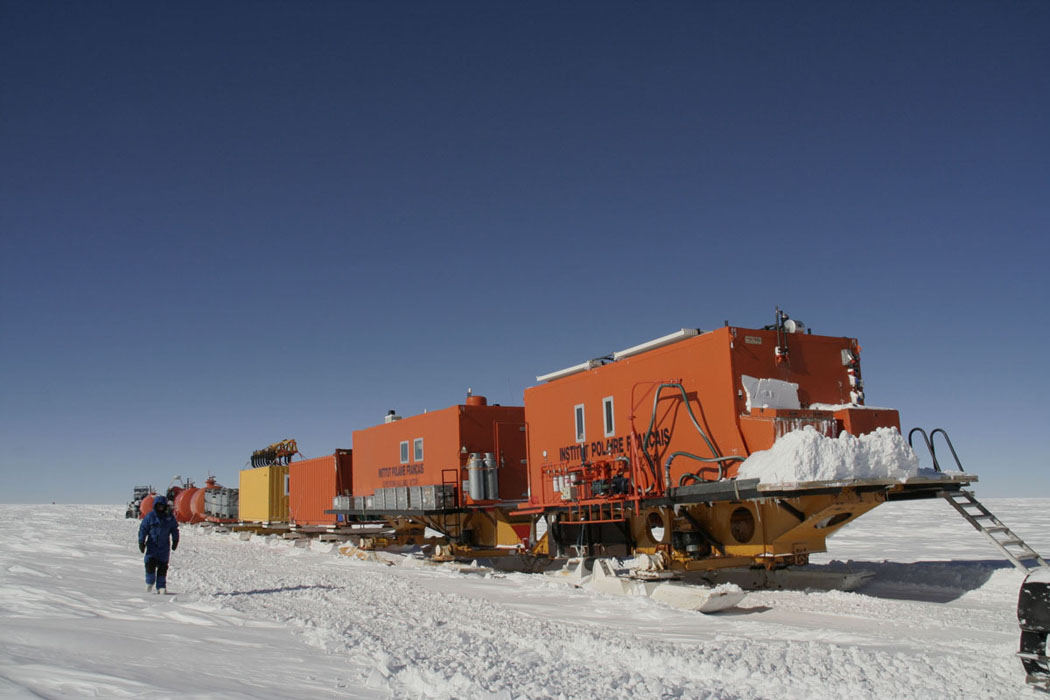

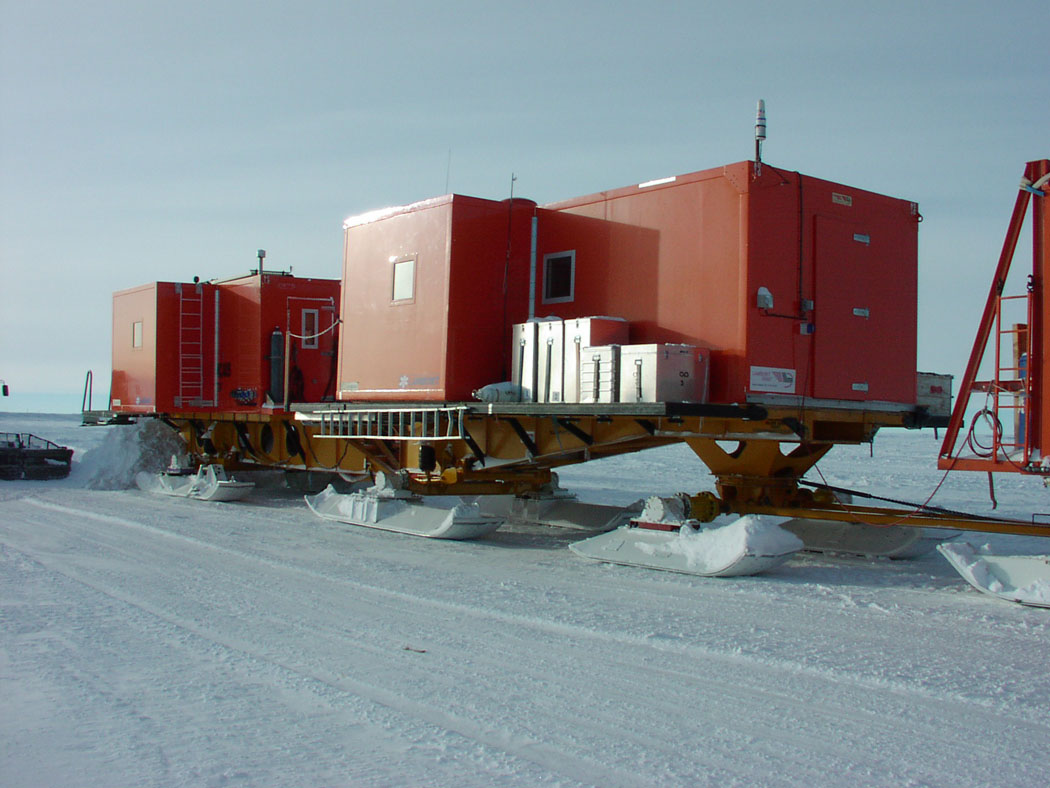

Caravans, 1992 units

Caravans_2010_Set

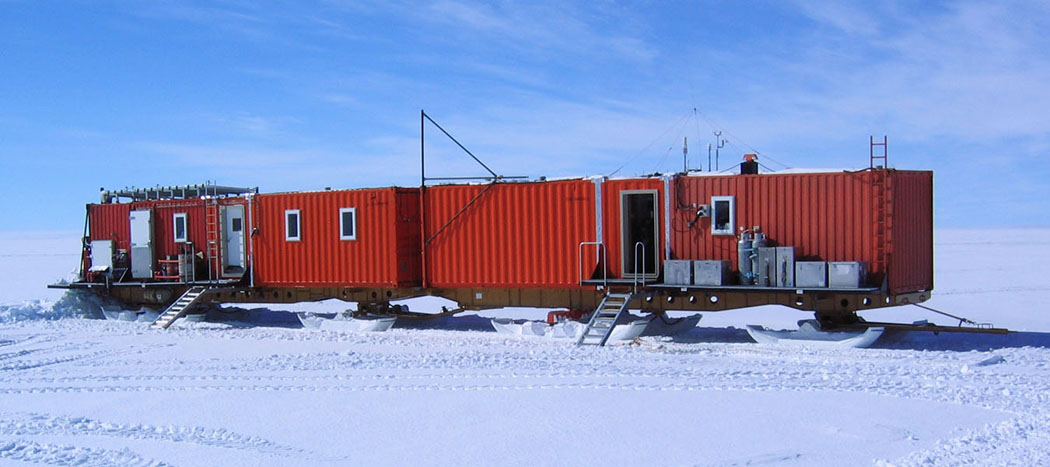

Caravans, 2010 units

















All modules are made of sandwich panels reinforced by metal armatures embedded in their structure. Panel thickness is around 100mm.



Caravan_2010_Set_Inside

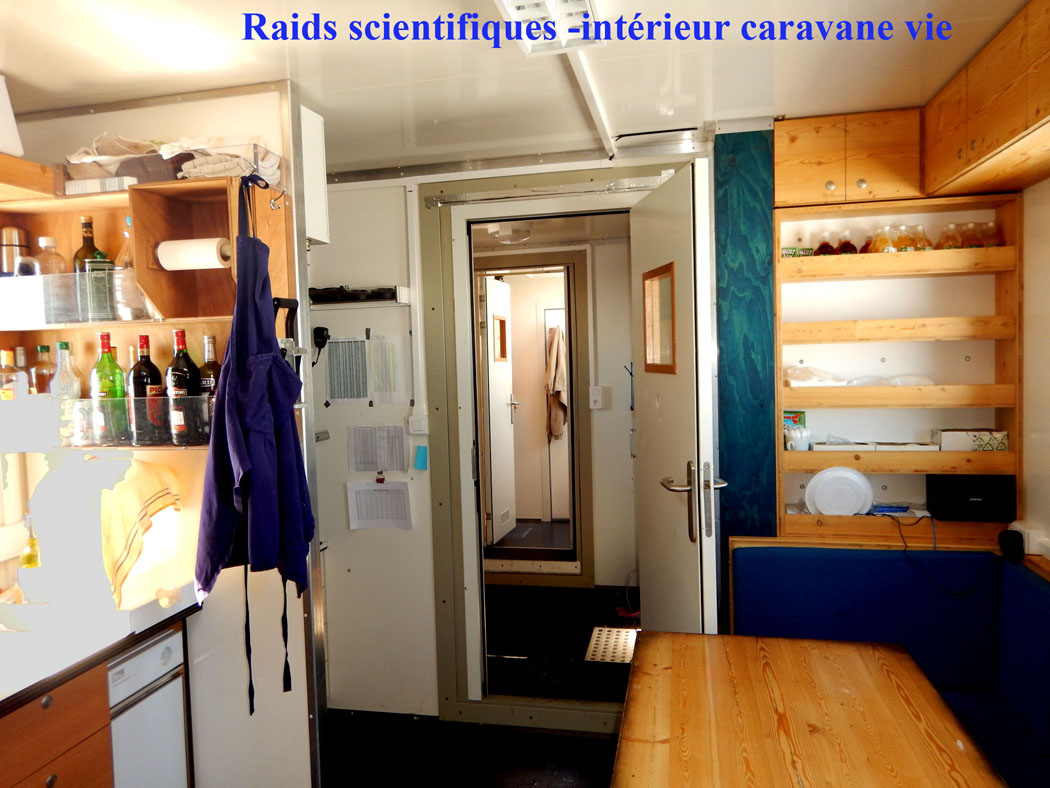

Caravan, 2010 life unit / Inside

Caravan_2010_Inside

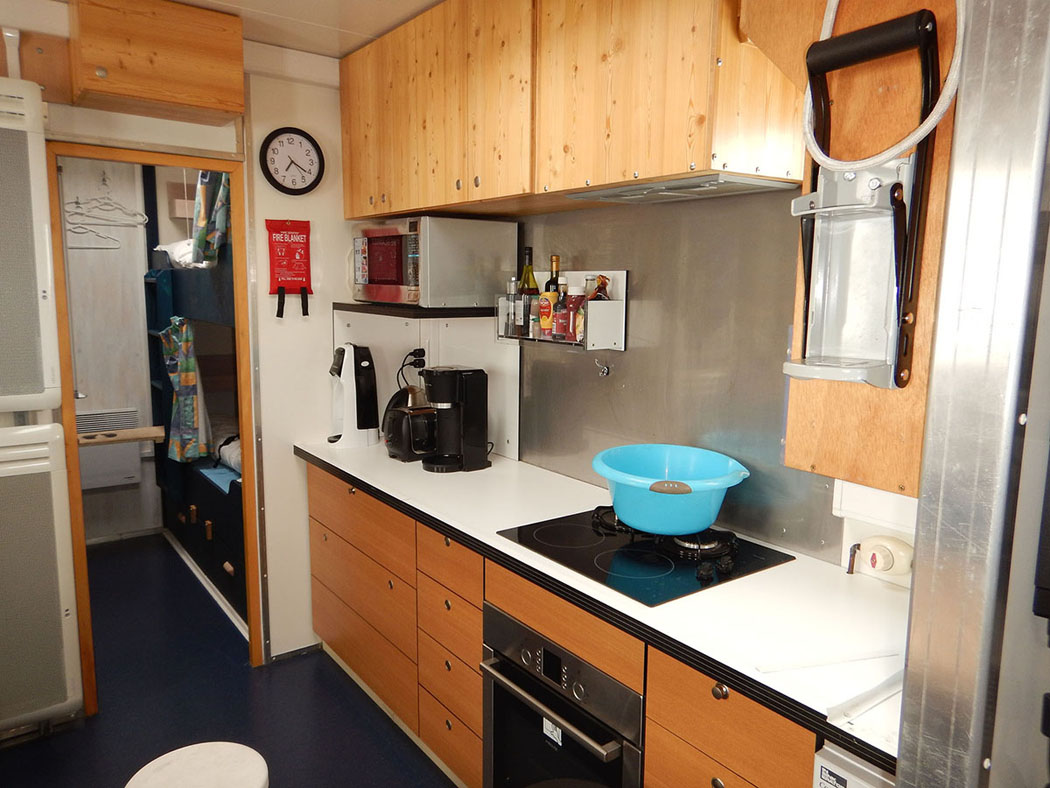

Caravan, 2010 life unit / Inside
