Drawing_6m_Decked_Sled

Drawing_6m_Decked_Sled

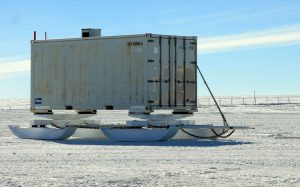

6m_Sled_With_Reefer

6m_Sled_With_Reefer













The sled is the traditional tool used to carry loads on snow or ice – it was invented in prehistoric times and preceded the wheel. The first designers instinctively conceived a simple low ground pressure device taking advantage of the low friction of snow on snow fields.



6m_Sled_loaded_with_Bulk

6m_Sled_loaded_with_Bulk

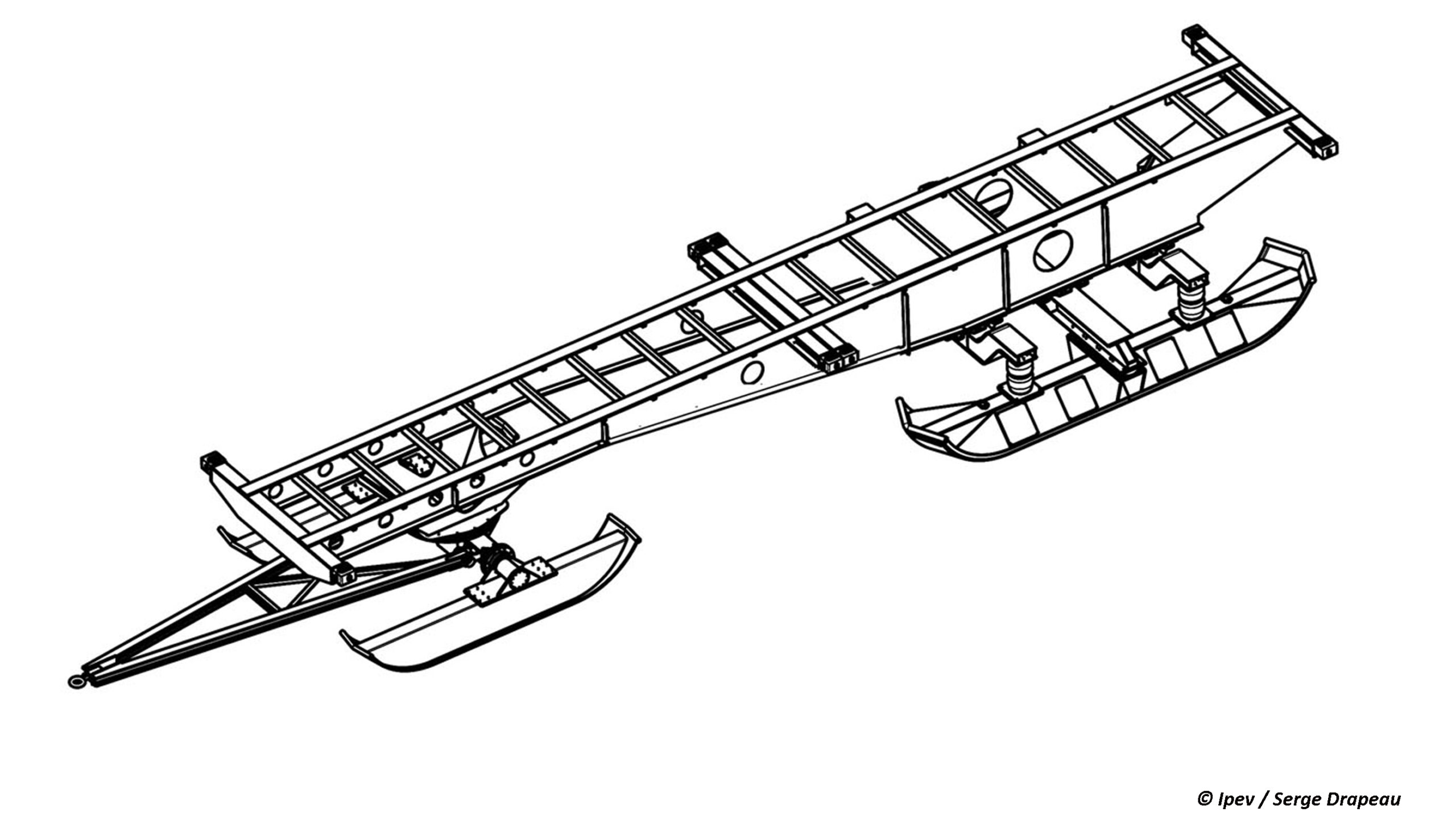

Drawing_12m_sled_(Trailer_style)

Drawing_12m_sled_(Trailer_style)














All traverses on ice caps have used sleds. Whilst every expedition has had its own light sled design, there have been few heavy sled designs. We have used Otaco and Aalener articulated models but these have been either too heavy or too fragile. We now use models of our own design, as follows:



12m_loaded_Trailer

12m_loaded_Trailer

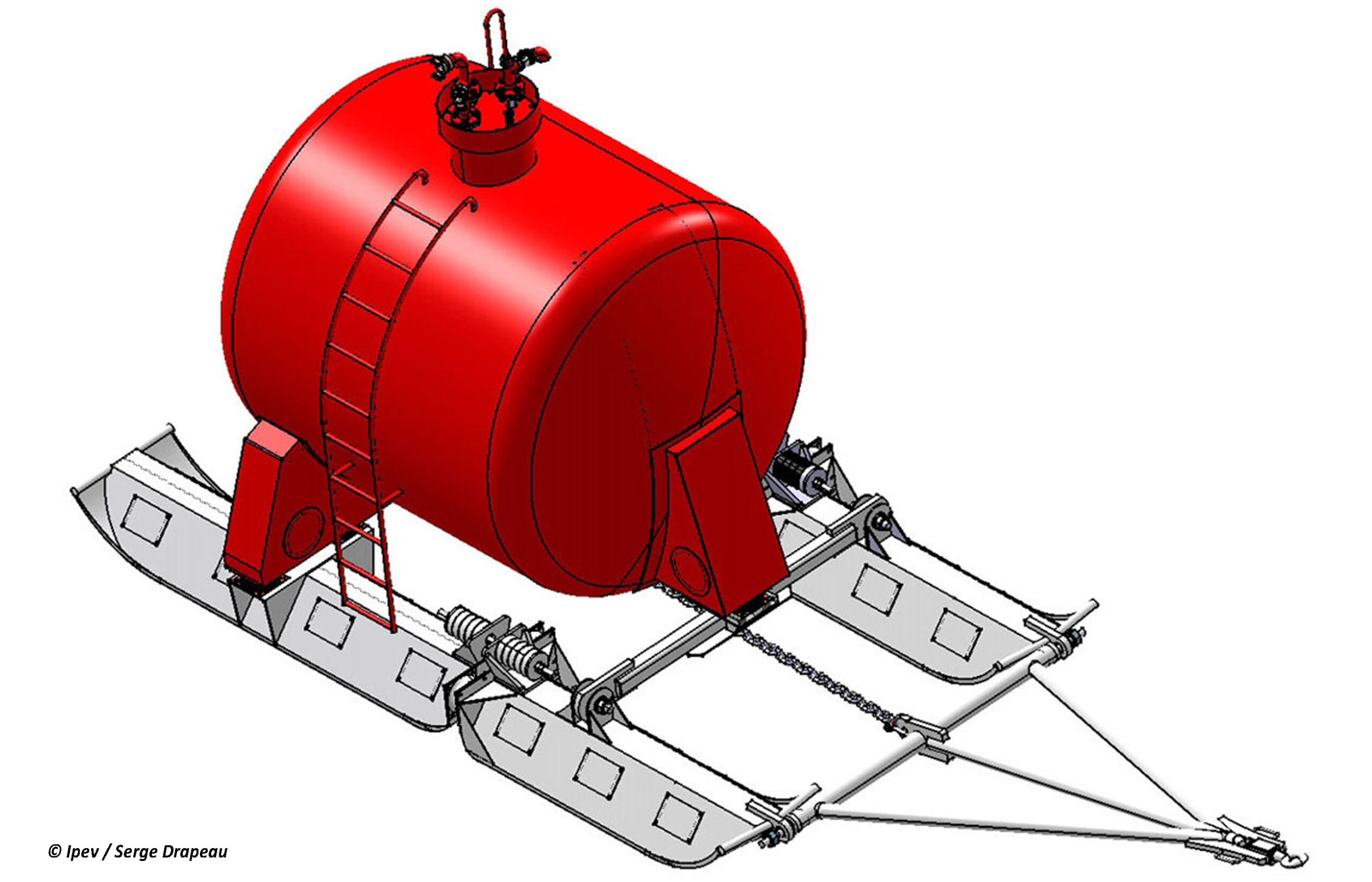

Drawing_12m3_Sled_tanker

Drawing_12m3_Sled_tanker

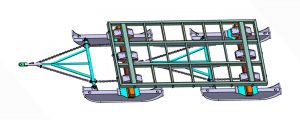

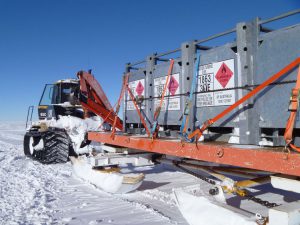

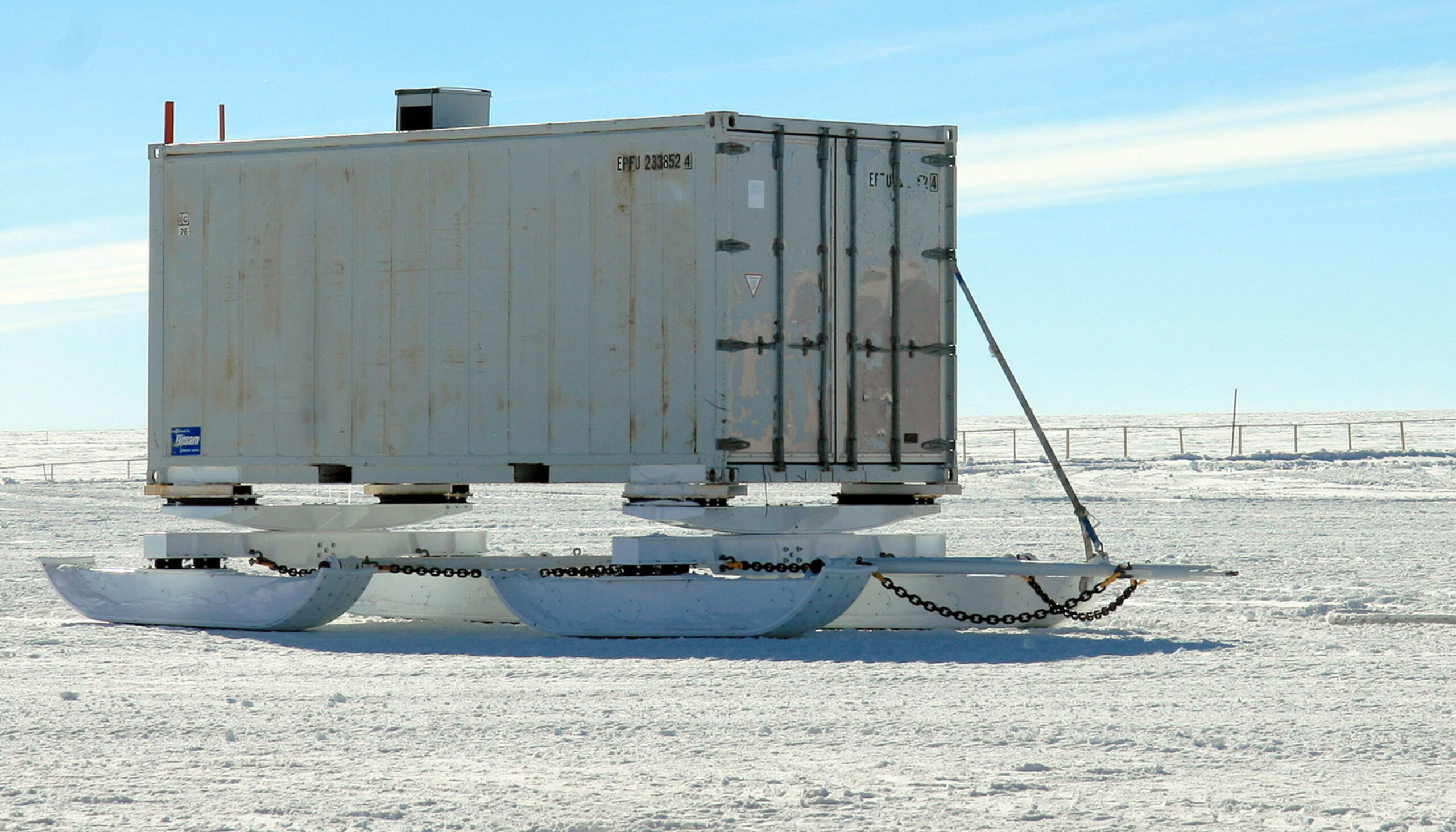

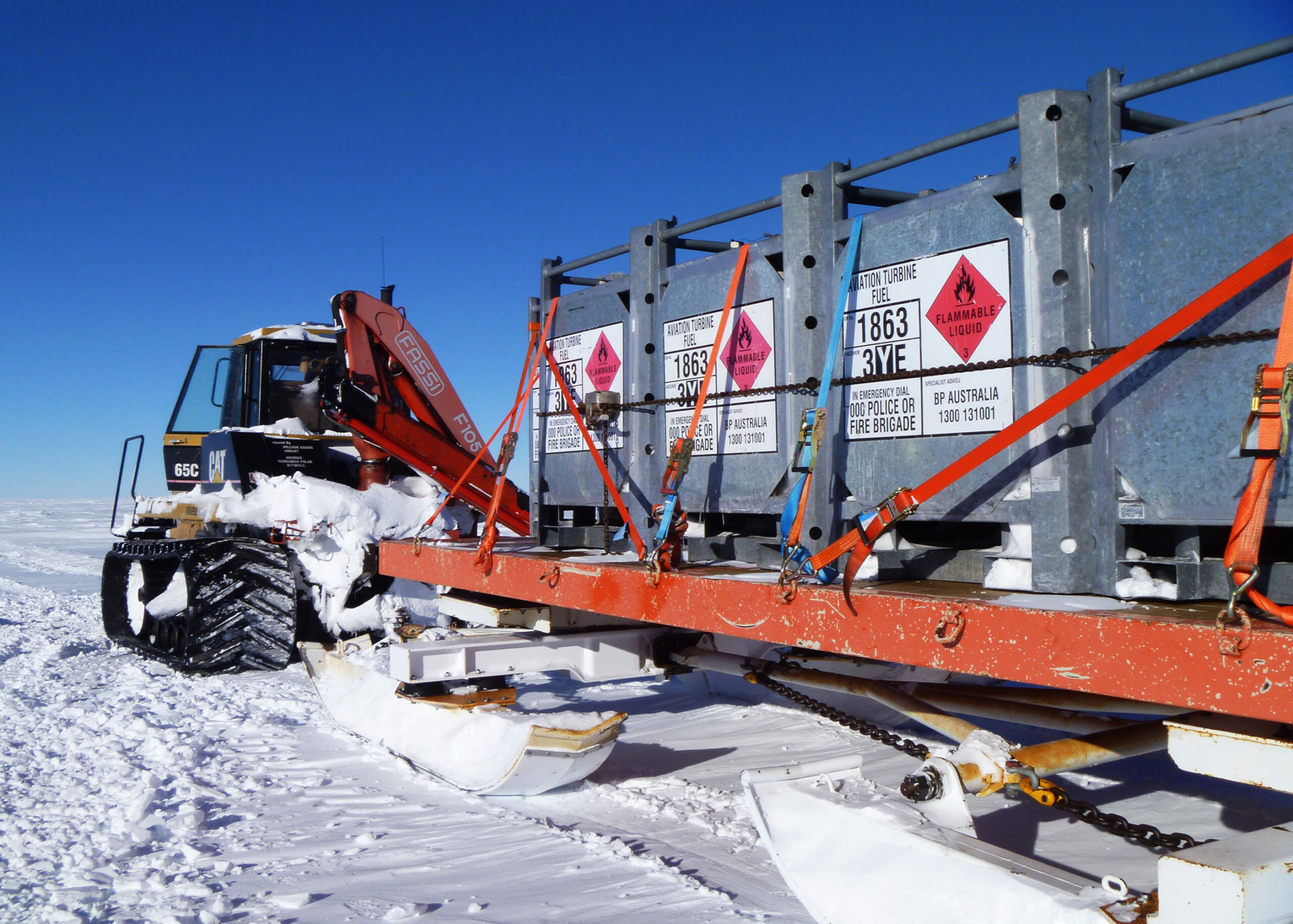

  • A 20 foot (6.06 m) articulated sled of 12 t capacity for dry cargo. This sled has evolved toward a sophisticated reliable version with low impact on the quality of the track.

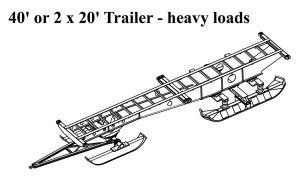

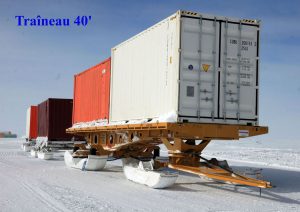

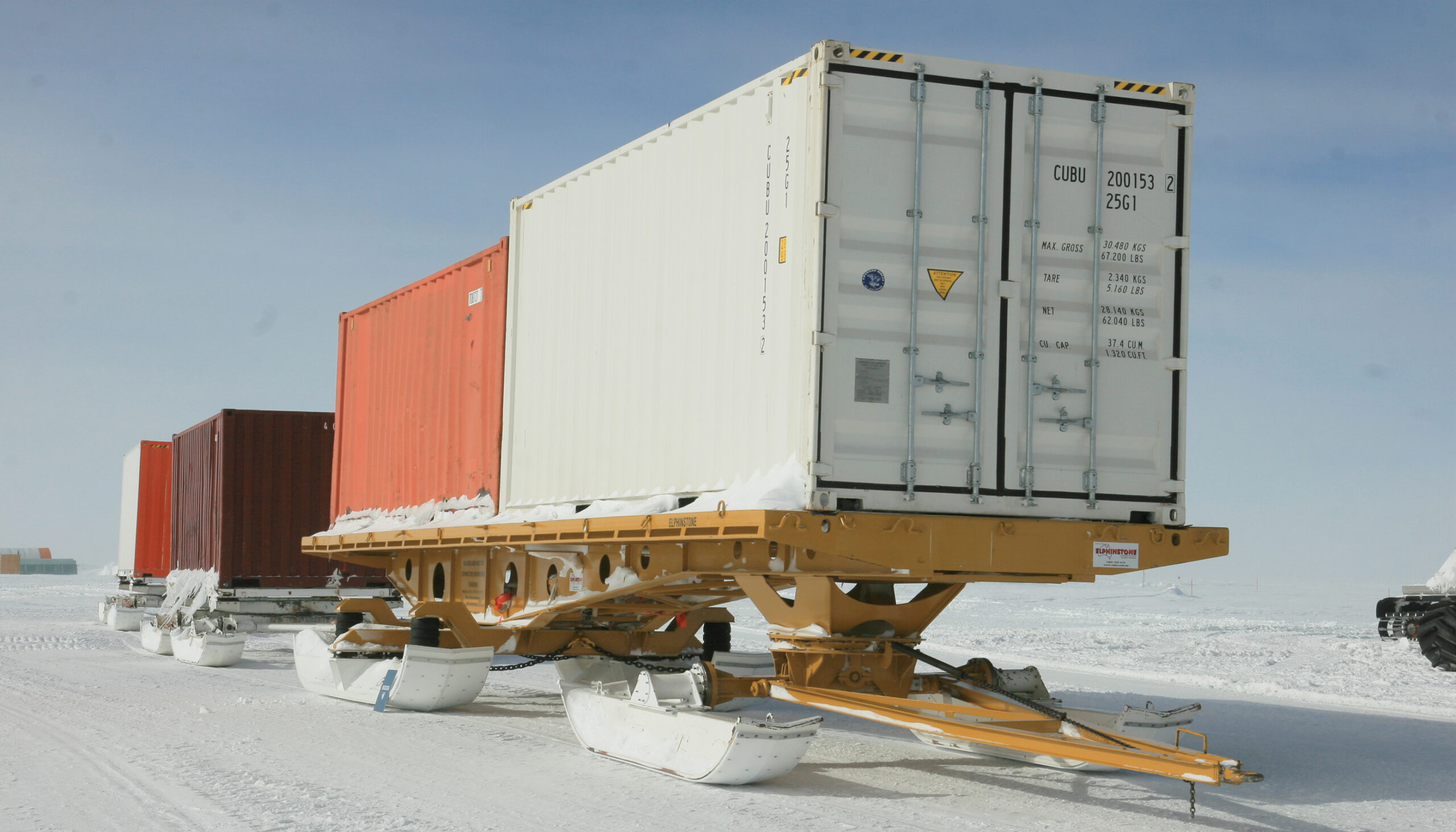

  • A 40 foot (12.15m) sled of 25 t capacity for dry cargo.

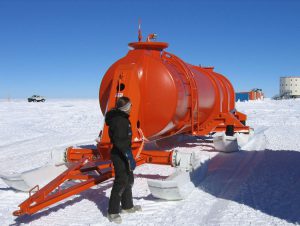

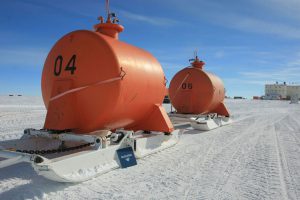

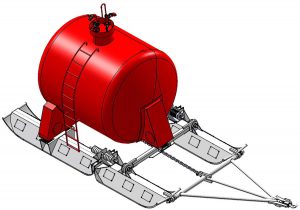

  • Two tank sled models dedicated to transportation of diesel fuel, the product most transported on traverses. The first model, a 12 m3 tank which sits on a single pair of articulated skis via elastic devices, is mainly dedicated to the traverse vehicles’ fuel. The second tank sled model, of 26m3 capacity, is used for transporting the site’s fuel. It also uses 4 skis linked to the chassis through elastic devices.



12m3_Sled_tanker

12m3_Sled_tanker

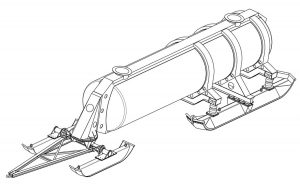

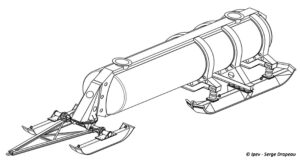

Drawing_26m3_Sled_tanker

Drawing_26m3_Sled_tanker













All sleds have in common a good net weight / gross weight ratio and almost no mechanical articulation whilst underway. This technological choice greatly reduces maintenance problems.

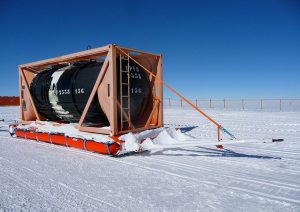

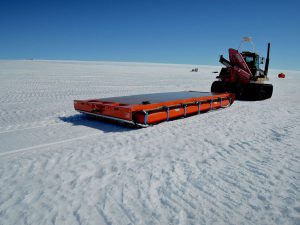

A new model has recently been tested. This consists of a platform, the area of a container, placed on a pneumatic mattress of 0.5m thickness. The pneumatic mattress is an intermediary between the load and the track surface. It rests on a large polyethylene sheet which is the sled’s ski. The mattress absorbs all the ground’s distortions as do sled skis but does not deform the track, and based on trials conducted and requires less effort in the forward direction compared to conventional sleds.



26m3_Sled_tanker

26m3_Sled_tanker

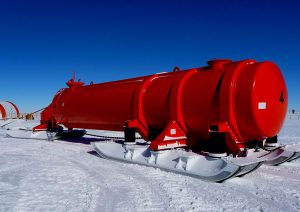

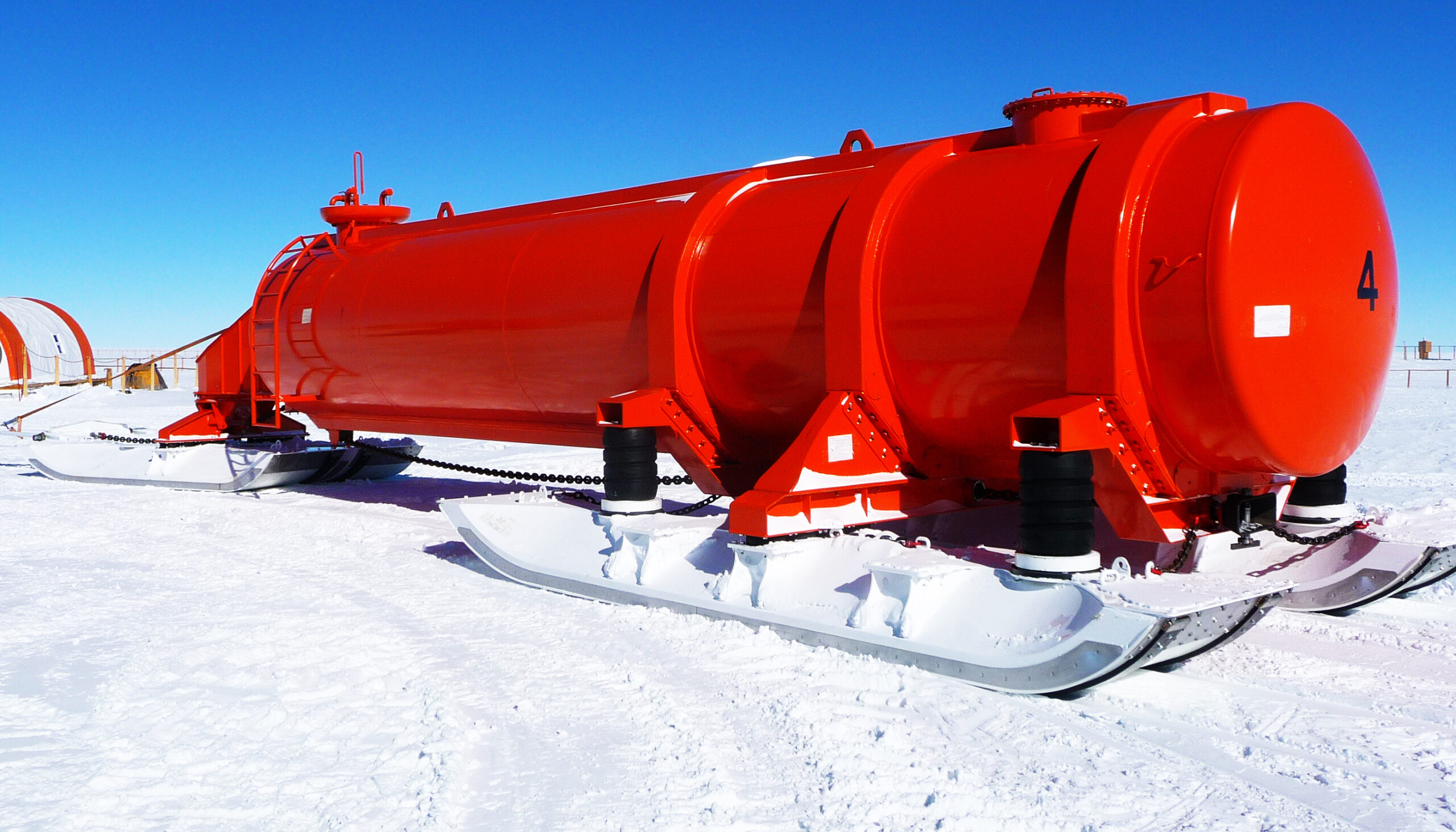

32m3_Sled_tanker

32m3_Sled_tanker

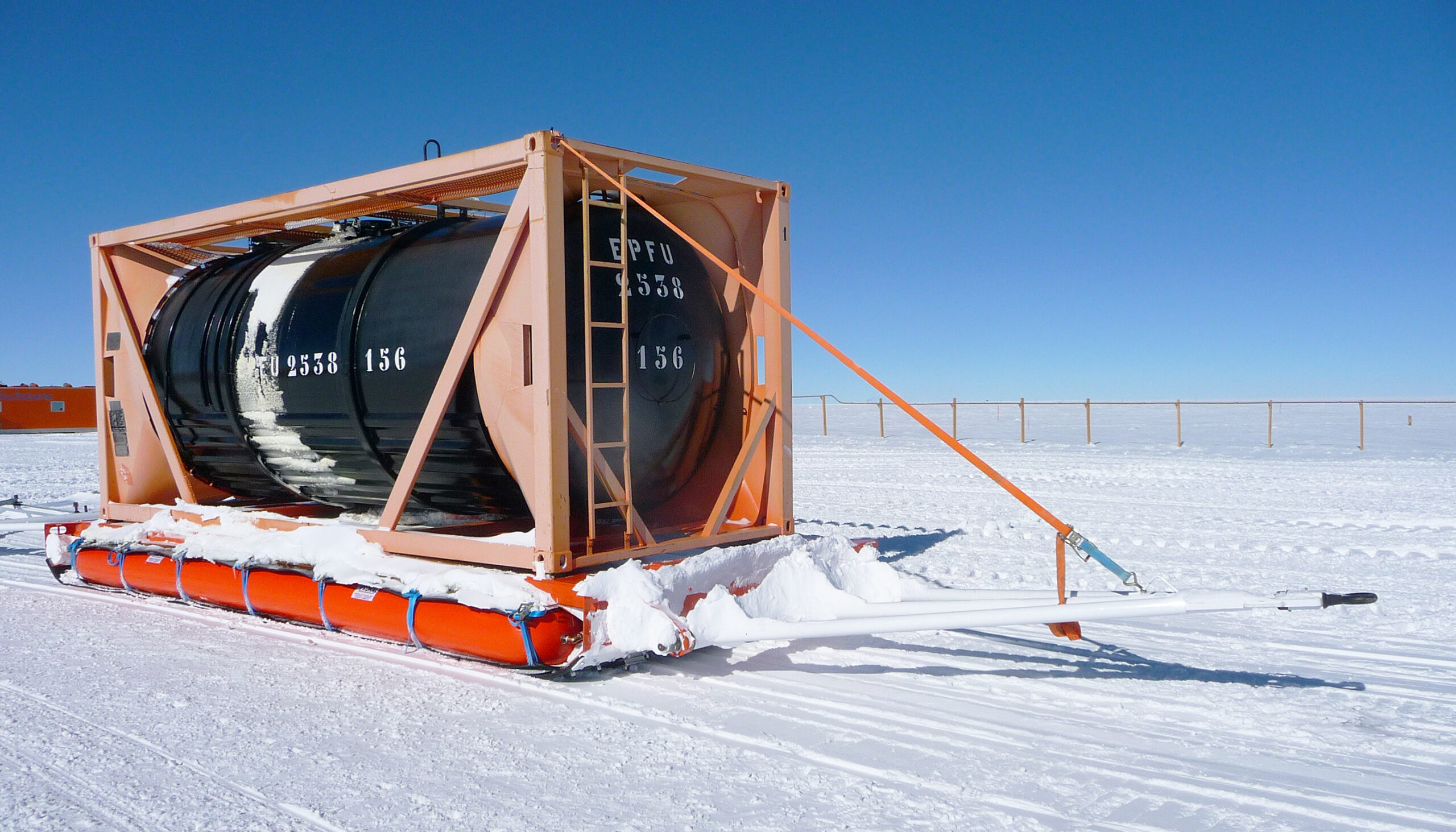

Air_cushion_sled_loaded

Air_cushion_sled_loaded

Air_cushion_sled

Air_cushion_sled
